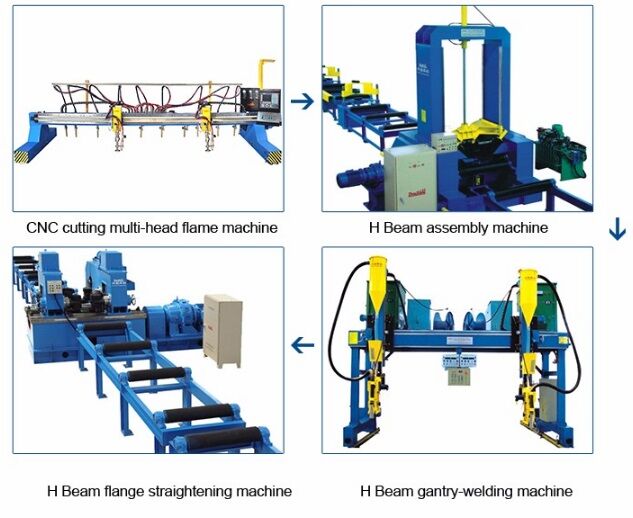

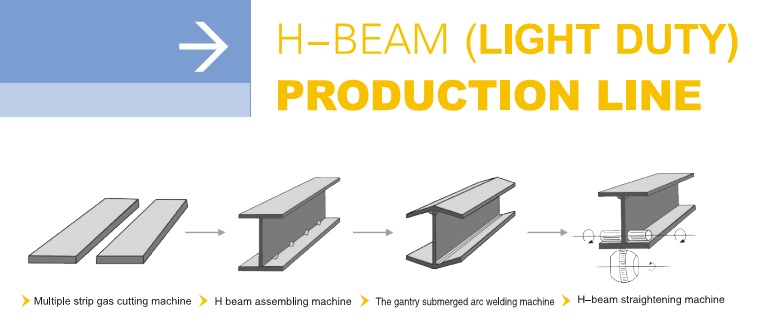

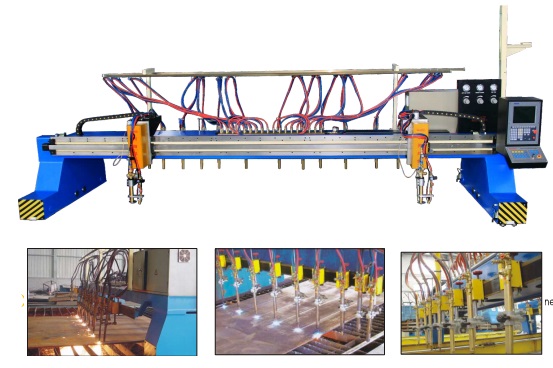

1 CNC/GDZ—4000 flame multiple-head cutting machine

1.1 Structural principle

Application:

CNC cutting machine can cut plates in arbitrary shape. Several cutting torches which are used to cut strips are fixed on the other side. As the steel plate can be heated and cooled at the same time, the side-curve will eliminate once for all.

The construction of machine:

This kind of machine is composed of a gantry frame, main and secondary longitudinal guide rail. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved. The driving of the main longitudinal end beam adopts Japan AC servo driving system and driving speed reducer, through rack-and-pinion gearing. The longitudinal guide ways firmed by pressure plate backing board and connecting sleeve, all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way. Cutting torch also moves by AC servo electric machine to drive the Japan SHIMPO speed reducer, then use rack-and-pinion to drive.

Gas path: longitudinal and transverse cable and gas pipe all adopt the engineering plastics chain 。

1.2 Technical Parameter

• Transverse gauge   4000㎜
• Effective cutting width of strip torch 3200㎜
• Track length 15000㎜
• Effective cutting length 12500㎜
• Cutting speed 100-1000㎜/ min
• Return speed                     4000㎜/min
• CNC transverse cutting torch 2 sets (one drive and one idle)
• Auto ignition 2sets
• Auto height-adjusting   2 sets
• Longitudinal cutting torch 9 sets
• Thickness of plate 6-70㎜(single torch 100mm)
• Cutting gas resource  oxygen, acetylene or propane
• Driving way    Japan whole digital vector AC servo motor double driving

1.3 Electrical control parts

The electrical control parts of CNC cutting machine is composed of CNC, electrical and servo systems; the main parts of the control system in CNC cutting machine are famous brands at home and abroad. Modularization structure is adopted by the system;

1.3.1 China SF2300 or  Spain FAGOR CNC System (option)

1.3.2 Japan Panasonic servo system

1.3.3 Japan(SHIMPO）ABLE reducer

1.3.4Auto-ignition device

1.3.5 Capacitive auto-height regulator

Shenzhen capacitive auto-height regulator CHC-200D

ECHC-200D

The working power of height adjustor is AC24V, control signal is up- down, manual/automatic, remote height adjust, signal of public earth sensor.

Height adjusting motor is DC24V motor, speed ratio of reducer is 1：2.5-1：15，

• work power：AC24V±10%，50HZ/60HZ
• elevation motor：DC24Vmotor
• output current：1A-4A
• working temperature：height adjustor-10～60⁰，HF coaxial linecable-10～200⁰C，sensor -10-350⁰C
• max output power：100W， reach 150W through changing current feedback resistance.
• （HF-cable）：500mm～15000m
• size：150mm×106mm×55mm

1.4 Goods supply range and component elements

1. Framework assembly: including longitudinal cart, transverse trolley, track, pipeline, draglink and steel strip mechanism
2. Track assembly: including 15m×2 (24kg/ m) gauge, rack, pressure plate and adjusting seat pad
3. Torch assembly: including 2 sets CNC flame torches, 9 strip cutting torches, and cutting torch adjusting frame
4. Driving assembly: including servo electric machine, epicyclic reduction gearbox, moving gear and rack
5. Electric control system: including CNC system, CNC box, operation keyboard and high electric control box
6. Gas power assembly: including gas power glue tube, Voltage regulating valve, electromagnetism valve

1.5 Parts made or prepared by users

1. Cutting platform, hanging line support frame, track base frame (drawing supplied by provider)
2. Foundation (drawing supplied by provider)
3. Foundation bolt (or expansion bolt)

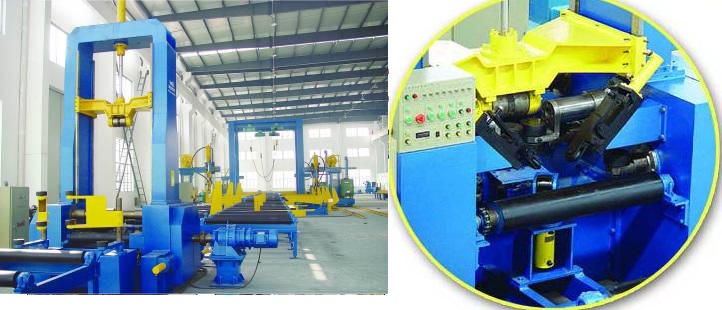

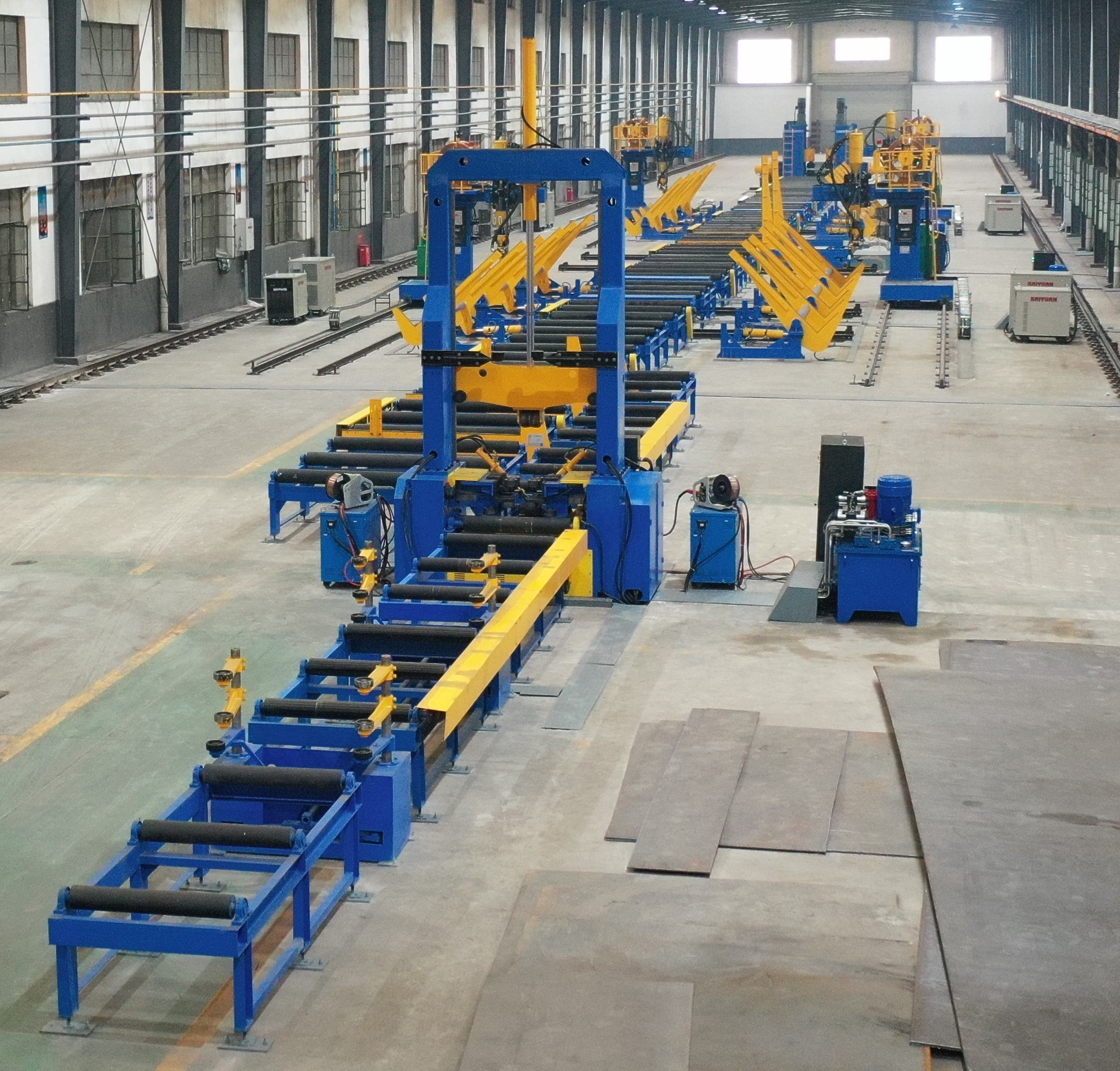

2. HZJX0825 H-beam Assembling machine

2.1 Structure principle

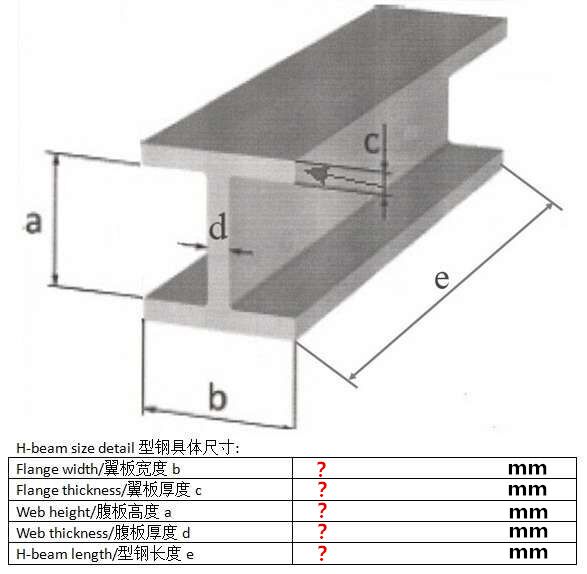

H beam is a metal structure composed of one web plate and two flange plates, it is widely used in agriculture ,industrial and construction area.

HZJX0825 automatic welding machine is composed of main machine（1 set), ZKR-350 type CO2 welding machine（2 sets）, power convey roller（one section each in front of and back of main machine）, idler convey roller（two sections each in front of and back of main machine）, power draw bar（1 piece）, idler draw bar（1piece）, hydraulic system（1 set）, electrical control system（1 set）and so on.

2.2 The features of this machine is as following:

• Compact structure：main transmission system is put inside of the main machine,which could save space, also is convenient for operation and maintenance.
• Main transmission system is composed of one set of motor and retarder, to ensure the synchronization and efficiency by chains and gears’ driven work. The material of main transmission roller and upper press roller is 40Cr，which goes through heat treatment and milling treatment, with improved precision and anti-friction features.
• The web clamp device and flange clamp device is the key part for H-beam assembly precision, which is also the creation advantage of this HZJX0825 automatic H-beam assembly machine. This machine adopts hydraulic motor finishing driven and position of clamp device through gear,synchronous shaft,chain, chain gears, guide screw and nut, rectangle guide rail,sliding base,clamp wheels and so on. This device has the features of high position precision, huge clamp power, wide clamp range ,convenient operation and low cost.
• The flange clamp wheels adopts two layout arrangement, web clamp wheel is four-group arrangement,upper-down two layer compact structure,all clamp wheels are installed by eccentric shafts. Which could adjust the position conveniently to make sure each wheel bear relevant load. In this way, the H-beam assembly precision is assured by compact flange-web clamp device, also could make sure to adjust the web straighten degree greatly in assembly specification range.
• The upper hydraulic pressing system adopts cylinder pushing upper press roller to press work piece tight,gantry elevation horizontal beam adopts rectangle rails, which could adjust the direction of wheel position, it has the advantages of light weight, anti-collision, flexible movement and stability.
• Web and flange heads position is precise and simple because there is manual position work piece frame at the head of main machine.
• There are one section of power convey roller both in front of and back of the main machine, they are driven together with main machine retarder through chain, this structure could make sure transmission convey roller’s synchronism and stable work.
• The arrangement of total machine is flexible, operation box and electrical control box is put separately, thus the operator could set the operation box’s position according to actual situation , the hydraulic pump station could also be put at any position of main machine according to needs and site arrangement.
• This machine is easily operated and simply adjusted. Electrical control system is composed of electrical control box, operation box and control cables, the inverter controls speed of main transition motor,PLC programmable control device could make different programs according to different assembly technical requirement.The output frequency of inverter is set by PLC,manual and automatic work could be adjusted by their cooperation.
• Safety operation.The electrical control part adopts AC 36V and DC 24V safety voltage, which could protect operator well.

2.3 Technical parameter

• Height of web: 160-2500mm
• Thickness of web: 6-40mm
• Width of flange: 150-800mm
• Thickness of flange: 6-40mm
• Loaded weight： ≦20 T
• Assembly speed：5-6 m/min
• Main motor power：5 kW
• Hydraulic station power：5 kW

2.4 Machine components and supply range

• Main machine:1 set（including main machine base, web-flange centering clamp device,upper gantry , main transition motor and retarder)
• Convey roller:1 set（two sections of power convey roller, four sections of idler convey roller, three groups of draw bar box）
• Hydraulic system: 1set（including hydraulic pump station, high pressure pipe,hydraulic cylinder ans so on）
• Electrical control system:1set（including electrical control box,operation box,AC inverter , PLC and so on.
• Automatic spot welding system：Optional( two sets of welding torch fixing device , two sets of Zhouxiang ZKR-350 CO2 welding machine)

2.5 Technical documents

• Operation manual（including electrical drawing, foundation drawing and general drawing）
• Operation manual for PLC
• Operation manual for hydraulic pump station
• Packing list
• Certificate
• Foundation drawing

2.6 Parts made by user

• foundation （drawing offered by seller）
• Earth bolts and expansion bolts
• Hydraulic pump oil ,lubrication oil of retarder
• Welding wire and CO2 gas

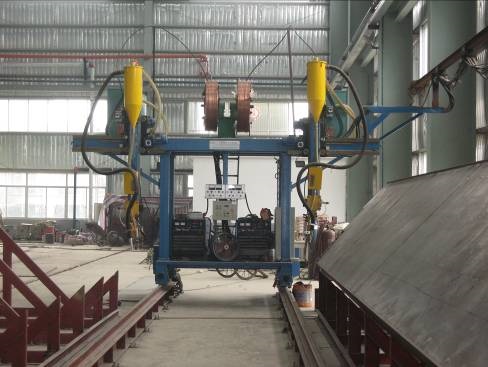

3. SXBH20 Double column welding machine
4.

3.1 Structure principle

For double column welding machine, the welding is accomplished outside the rails. It can weld the H-beam which is higher than 1.5m, no limit for beam height. When it is single arc single wire welding , the welding power can be settled on the machine trolley.

The moving trolley is driven by two motors speed-reducer, the system is double driving, which insure the moving stable and reliable.

There is rail and rack in the front of the up platform, which can make the welding arm and tool carriage moving. There are two wire reels and flux recovery machine on the platform.

Welding arm is the most important part for welding work, it can move horizontally on cross beam together with tool carriage, also can move up and down on directional wheel of the tool carriage .

Seam tracking device is placed under welding beam, it has auto compensation function for H-beam‘s deformation .

Wire feeding device is fixed in arc-guiding device, it can connect wire feeder and wire reel together by wire feeding pipe.

3.2 Technical parameter

• Gauge： 2000mm
• Welding speed： 15～1 m/min
• Return speed： 3 m/min
• Web height： 200～2200mm
• Flange width： 200～800mm
• Main motor power： 4 kW
• Recycling machine power：3 kW

3.3 Goods Supply range

1. Main machine: trolley, vertical column, and up platform etc.
2. Welding beam and dragging board: welding arm, tool carriage etc. 2 sets
3. Welding seam tracking system: arc-guiding frame, wire feeding system, cross sliding board etc. 2 sets
4. Flux recycling system: flux recovery machine 2 sets, flux bucket, flux cylinder, feeding pipe etc. 2 sets.
5. Electrical system: electrical cabinet, control box, inverter etc.
6. SAW welding source: double arc double wire, equipped with Zhouxiang MZ1250 2 sets.

3.4 Technical files

1. Operational manual (including electrical principle drawing, foundation drawing etc.)
2. Transducer manual
3. Flux recovery machine manual
4. SAW welding source manual

3.5 Manufactured by customer

1. a. 24kg/m rail, pressing board, bolt.
2. line hanging frame( seller supply drawing)
3. workpiece welding frame ( seller supply drawing)
4. Foundation (seller supply drawing)

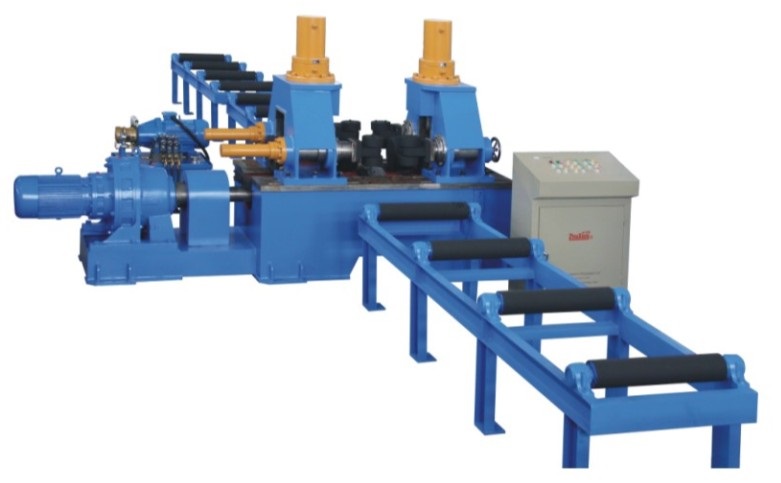

4 YJZ-60D H-beam hydraulic straightening machine

4.1 structural principles

This machine is used for straightening H beam flange. The two upper straighten roller press two edges of flange, lower straighten roller hold middle of flange. By force of oil cylinder, two upper straighten roller press down and make flange flat.

Machine is composed of reducer, coupling, frame, upper and lower straighten roller, web clamp device, conveying roller, hydraulic system and electrical control system.

This machine has the following features:

1. Both sides of flange can be straightened separately to gain better effect.
2. Roller doesn’t elevate, thus save cost and operate easily.

4.2 Technique parameter

Flange thickness: 6-60mm（Q235-A），6-40mm（Q345）

Web height: ≥160 mm

Straighten speed: 9.8m/min

Main transmission motor: 15kw

Hydraulic motor: 5.5kw

Working pressure: 25Mpa

Flange width and thickness should be in accordance with the following list:

Thickness	6-20	20-30	30-40	40-50	50-60
Width	200-800	350-800	500-800	650-800	750-800

4.3 Machine components

Main machine: has reducer, motor, frame, base, etc

Conveying roller: 3.5m*4pcs

Hydraulic system: has pump, cylinder, high pressure soft pipes.

Electrical system: electrical control box, cable, etc.

4.4 technique documents

Operational manual (includes electrical drawing, hydraulic drawing)

Certificate of quality

Packing list

4.5 Parts manufactured by users

Foundation (drawing provided)

Foundation bolt
